Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Konlison
  • Model Number: P7.81
  • Usage: Indoor/Semi-outdoor
  • Tube Chip Color: Full Color
  • Display Function: Video
  • Pixels: 7.81mm
  • Screen Dimension: OEM
  • Name: P7.81 SMD3806 Display
  • Module size (mm): 1000*500
  • Display resolution: 128*64
  • LED configuration: SMD 3 in 1
  • Pixel density: 16384Pixel/screen
  • Viewing angle: H160/V160
  • Refresh rate: >1920Hz
  • Max power: 800W / screen
  • Ave power consumption: 310W/ screen
  • Operating power: AC110~240V, 50 ~ 60Hz

Packaging & Delivery

Packaging Details wooden case/flight case
Delivery Time 20-25 Days After Payment

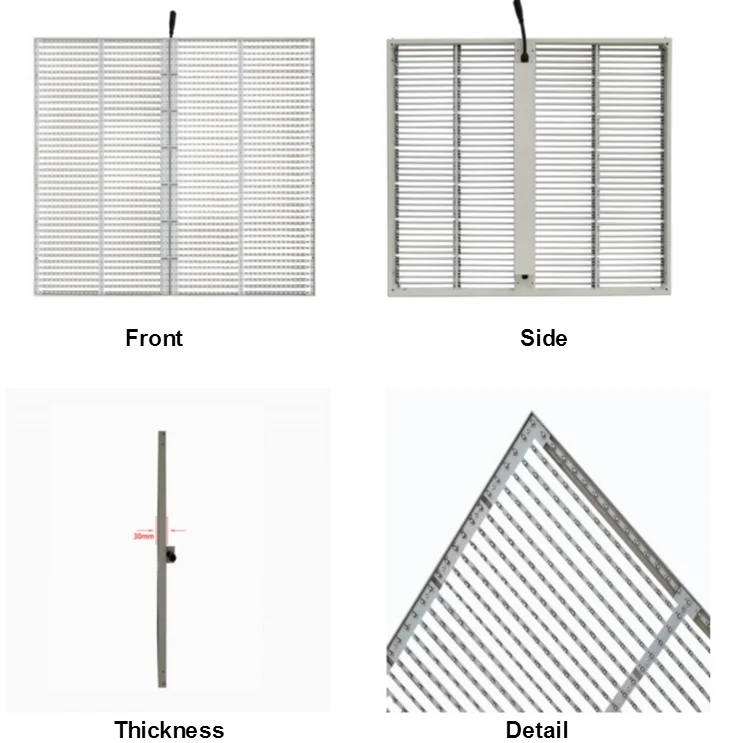

P7.81 Aluminum Full Color Led Screen Cheap Transparent Glass Led Display Best Price



Product Description











Aging Test

Specification:

 OEM pixel pitch is welcomed, such as P10, P20

Module No.L3.91(SMD)L3.91(SMD)L7.81(SMD)L15.62(SMD)
Pixel Pitch(Hor.)3.91mm
(Vert.)7.81mm
(Hor.)3.91mm
(Vert.)7.81mm
P7.81mmP15.62mm
Transparency70%60%75%85%
Pixel/sqm32768 32768 16384 4096

Maximum

Power Consumption/sqm

800W500W800W1000W

 Playing

Power Consumption/sqm

340W340W310W300W
Resolution/sqm256*64256*64128*6464*64/62*42
Cabinet Size(mm)1000*5001000*5001000*500968*656
Drive Method 1/10 1/16 1/4static state
Weight/Cabinet(KG)14101210
Brightness(nits)≥5000≥2500≥5500≥6000
 LED Encapsulation Mode

      SMD1206 RGB                     (side lighting)

 SMD1921RGB

 (front lighting)

SMD3806RGB

 (Side lighting)

SMD3535RGB

(Front lighting)

Pixel compositionRGB
Refresh Rate≥1920Hz
Protection GradeIP30
Grayscale16bit
Brightness Adjustment256 levels for R, G, B
 Drive ICTaiwan MBI
Control System Mooncell (or OEM)
Display interfaceTerminal DIV/HDMI
Power SourceCVTE or other Brand
Working Voltage220±5% / 110±5% →DC5V (Display)
Input Voltage AC100~240V 50Hz
Temperature Rangebelow10℃~40℃
Installation TypeAccording to the site requirement , such as lifting, bases loaded, etc
led Life Time100,000 hrs





Transparent LED glass screen is also called LED screen, LED glass curtain wall screen, LED display screen, which is the research and development new products based on the traditional LED display.It consists of article lamp assembly. As a new advertising media,it is widely used in glass curtain wall, shop Windows ect. with high transparency, good heat dissipation performance and light weight. It becomes a highlight of  new led display for multimedia advertising media in our modern city.

LED glass screen is widely used in various places of business, especially suitable for use in shopping malls, airports, stores, exhibition, high-speed and other high-end places. It is beautiful and easy installation.

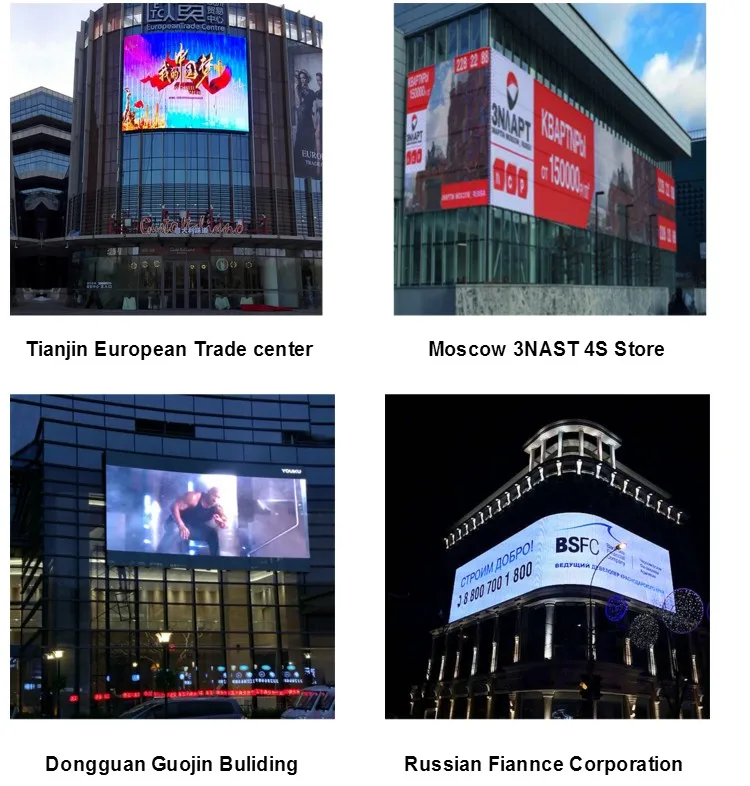

Case:



6 Advantages:

FAQ



1. Payment Terms?—— We accept payment by bank transfer (T/T) , Credit Card on Alibaba, or other payment terms you want that can contact us, payment should be paid before delivery .



2. Shipment Way?——You can choose to use sea shipment or air freight or express by DHL or such as this(UPS,FEDEX,TNT,EMS, ARAMEX).We can help you to book ship or arrange the shipment, or you can use your own shipping agent.



3.Warranty?——We offer a 2 year warranty service according different order, and to provide free technical guidance.We have a professional service team; They are always online waiting to serve you.

During the warranty period, most of damaged parts could be replaced free of charge.

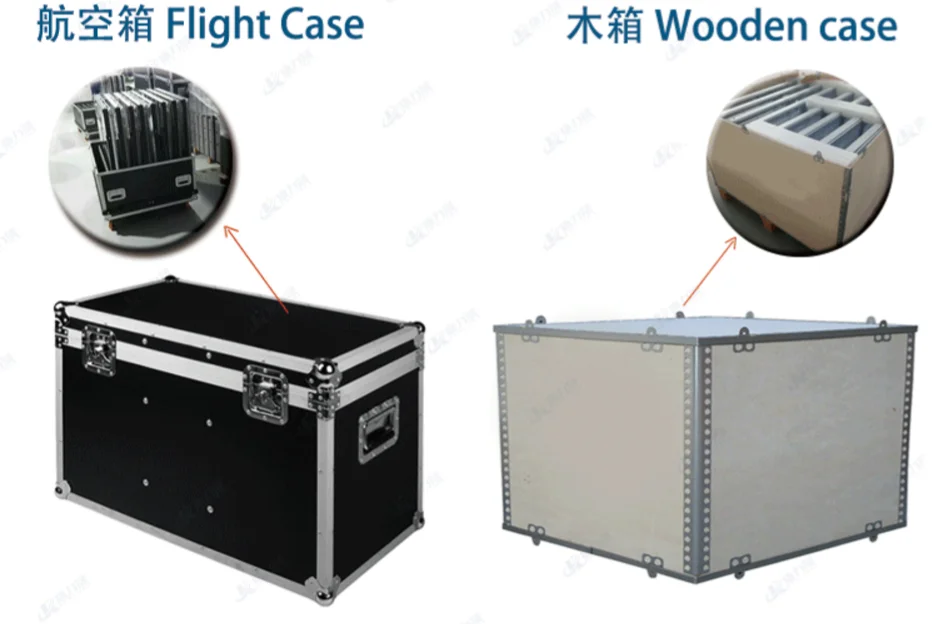

4.Packaging ways for our led screen?

We provide Flight case or wooden case for led display board. Customers can freely choose from them. But in any case, we will both ensure the use of appropriate packaging to protect led display board safety.



5. Delivery time?——Sample order will be shipped out in 3-5 days after got your payment. Large order depends on quantity.Warmly welcome sample order, many sample orders make big order in our factory.

Hope to cooperate with you , my dear friends !

Package:





Shipping:



Company Information





Equipment:

8 panasonic high-speed SMD machines;

6 YAMAHA SMD machines;

3 reflow soldering(Jintuo) machines; 8 automatic press;

2 automatic wave soldering madchine;

9 LED cutting machines;

2 AOI testing machines

Capacity:

 SMD 3,600,000 points per day, DIP 2,000,000pcs per day, test 200,000pcs per day.







Main Business:



1.Transparent led display screens

2. LED Curtain/Strip display screens

3. LED showcase / window glass display screens

4. Full color indoor/outdoor led display, half-outdoor unit plate, smd unit plate.

    ODM/OEM is welcomed.



Our Services



I. Aboves are regular, special can be specially designed.
II. Free warranty for two years, each additional pay 4% a year.
IIV. For life to provide free installation and application of related technical guidance.
IV. Obtained certifications: ISO9001:2008,CE,FCC,CCC,UL,RoHs,SGS (Special requirements for the certificate we provide to apply for assistance).
V. Accept different payment terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,cash.
VI. Software upgrade for free
